• Structure Size (L × W × H): 3 × 2.2 × 2.3 m
• Sift Accepting Area: 3 × 2 m
• Average Load Capacity: 2200 kg
• Primary Frame Specs: 10 × 10 cm I-beam posts & crossing square tubing
• Sidewall & Front Wall Steel Plate: 3.5 mm / 10 GA
• Deck Bar Size: 40 × 40 mm square tubing
• Deck Bar Length: 2.7 m
• Deck Bar Gauge: 4 mm / 8 GA
• Standard Bar Spacing: 76 mm
• Number of Standard Bars: 18
• Minimum Bar Spacing: 25 mm (extra deck bars required)
• Maximum Number of Bars: 26 (at 25 mm / 1” spacing)
• Maximum Bar Spacing Capacity: 127 mm
• First & Last Deck Bar Opening: 70 mm
• Slope Angle: 37°

Your order will be shipped from our warehouse in Australia. Typically, we process and ship orders within 2 to 3 business days. Delivery time varies based on your location and accessibility, with most orders arriving within 10 to 15 business days.

• Packaging: Packed in a metal crate shipping box
• Shipping dimensions: 305 x 77 x 87 cm (L x W x H)
• Shipping weight: 1066 kg

We know that when you invest in equipment, you're counting on it to perform day in and day out. At TMG Industrial, that trust means everything to us. That’s why we include a 1-year Warranty with every product we sell—because you deserve confidence with every purchase.

Our warranty is there to make sure your equipment stays reliable across the seasons, covering any issues caused by manufacturing defects in materials or workmanship. From fieldwork to property maintenance, you can count on your TMG equipment to deliver.

More than just warranty coverage, we’re committed to supporting you throughout the life of your machine. Our customer service team is here to help, whether you need technical advice, troubleshooting, or parts support.

For full warranty terms, please see our warranty policy

• Q: What is the primary use of the TMG-RS10 rock screen?

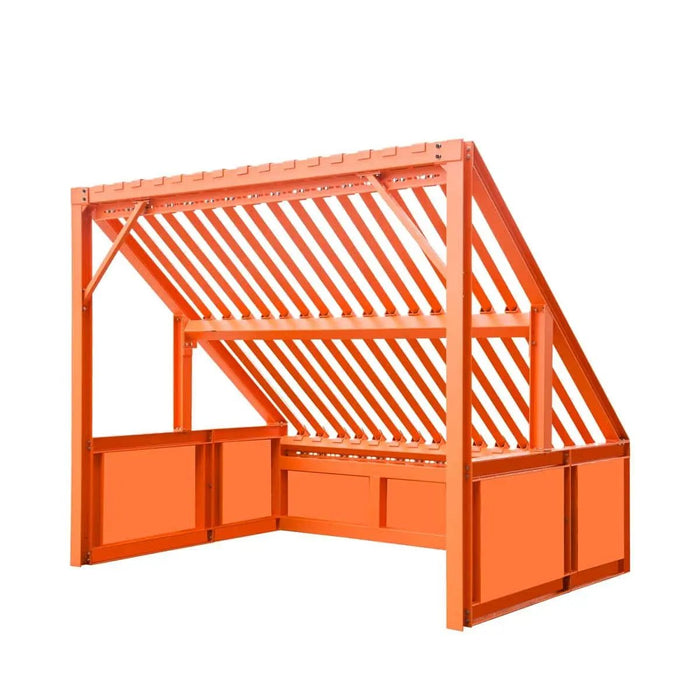

  A: The TMG-RS10 is a heavy-duty grizzly static rock screen primarily designed for efficient material sorting and pre-screening oversized materials in industries like mining, construction, aggregates, recycling, and landscaping.
• Q: What is the load capacity of the TMG-RS10?
  A: The TMG-RS10 has an impressive average load capacity of 2200 kg (5000 lb), allowing it to handle significant volumes of mixed loads.
• Q: What kind of frame does the TMG-RS10 have?
  A: It features a robust 4"x4" (10 cm x 10 cm) I-beam frame and a powder-coated steel structure, ensuring durability and resistance to harsh working conditions.
• Q: Are the deck bars adjustable?
  A: Yes, the TMG-RS10 is equipped with adjustable bolt-on deck bars that offer spacing options from 25 mm (1") to 127 mm (5"), allowing customization for different material sizes.
• Q: What is the slope angle of the screen?
  A: The screen has a 37° slope, which is designed to facilitate efficient debris removal and smooth material flow.
• Q: Is the TMG-RS10 easy to assemble?
  A: Yes, the rock screen is designed for quick assembly, making it convenient to set up for immediate use.
• Q: Is there a warranty on the TMG-RS10?
  A: Yes, the TMG-RS10 is backed by a 1-year manufacturer warranty. Customer support and spare parts are also available.
