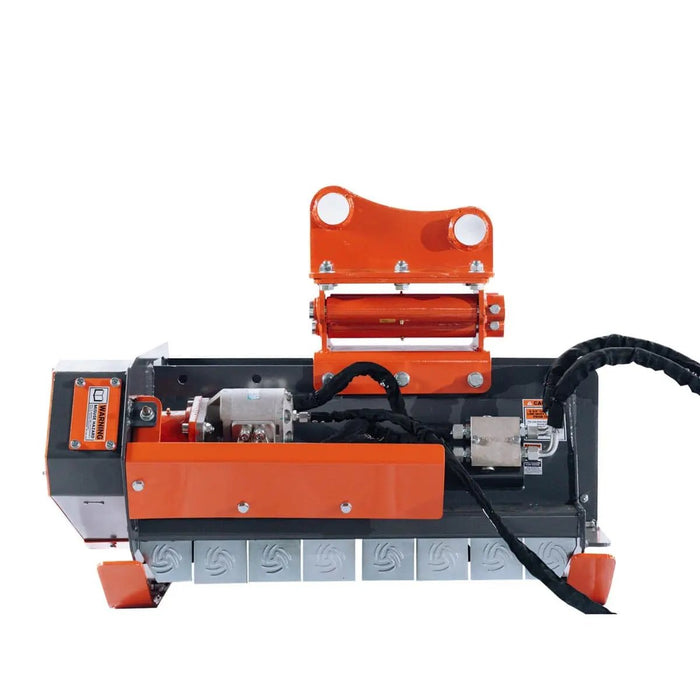

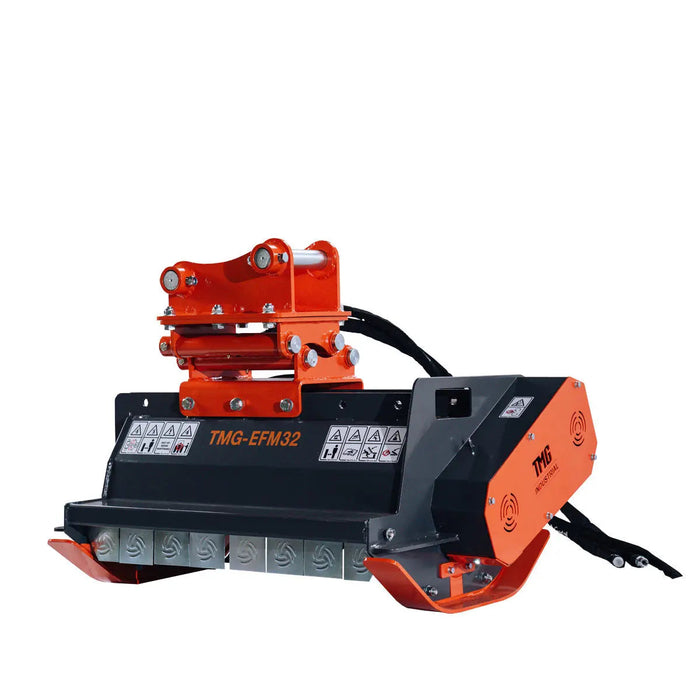

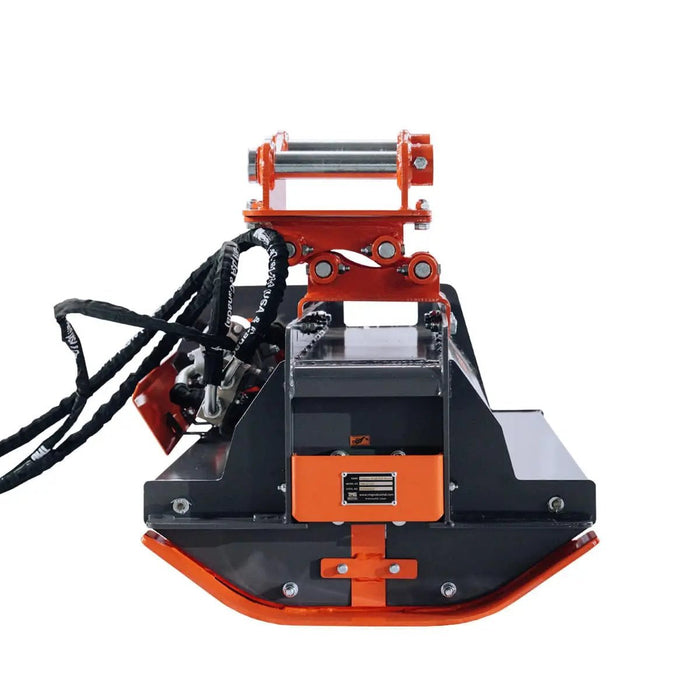

• Excavator Capacity: 3–5 ton
• Working Width: 810 mm (32″)
• Max. Cutting Diameter: 50 mm (2″)
• Number of Blades: 14
• Hydraulic Flow: 38–60 L/min (10–16 GPM)
• Hydraulic Pressure: 20 MPa (2900 PSI)
• Number of Hydraulic Hoses: 3
• Case Drain Line: Required to add
• Number of Belts: 3

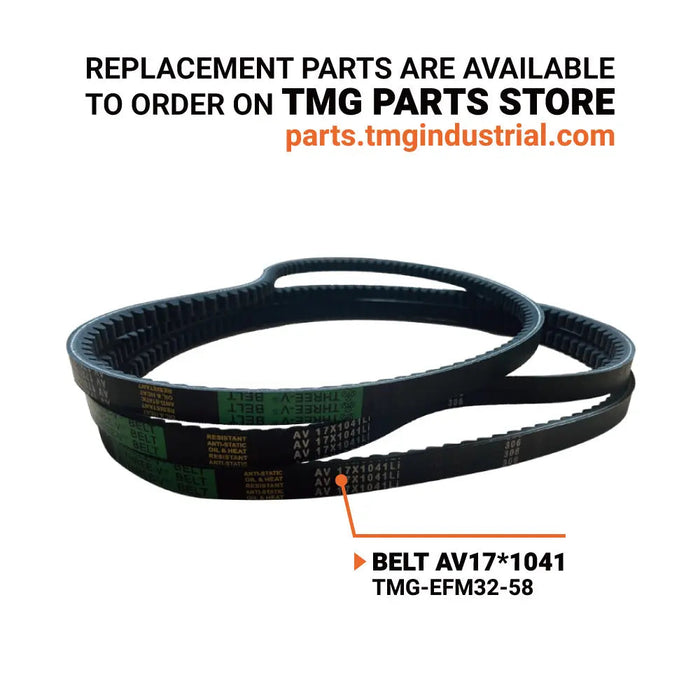

• Belt Model & Size: AV17 x 1041
• Finish: Powder coated
• Overall Dimensions (L x W x H): 1041 x 864 x 813 mm (41″ x 34″ x 32″)
• Net Weight: 308 kg (680 lb)

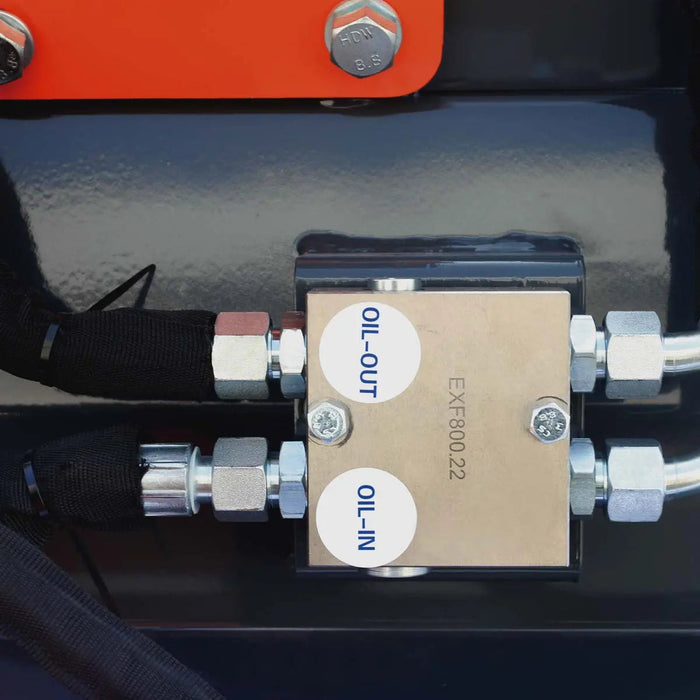

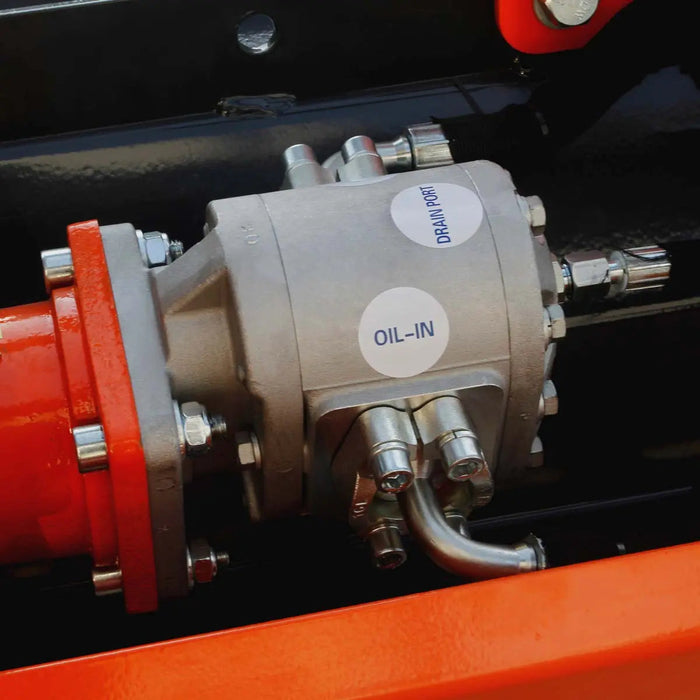

IMPORTANT: A case drain line (3rd hose line – 10 mm) must be installed before using this attachment. The case drain line relieves excess hydraulic pressure and directs it safely back into the reservoir. Do not connect the case drain line to the return line. Failure to install a proper case drain line may cause seal failure or damage to the hydraulic system.

Your order will be shipped from our main warehouse in Australia. Typically, we process and ship orders within 2 to 3 business days. Delivery time varies based on your location and accessibility, with most orders arriving within 10 to 15 business days.

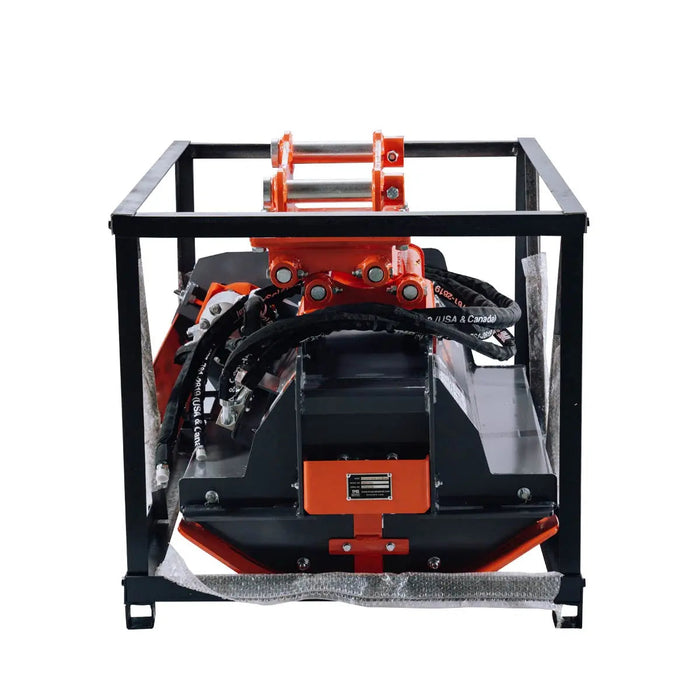

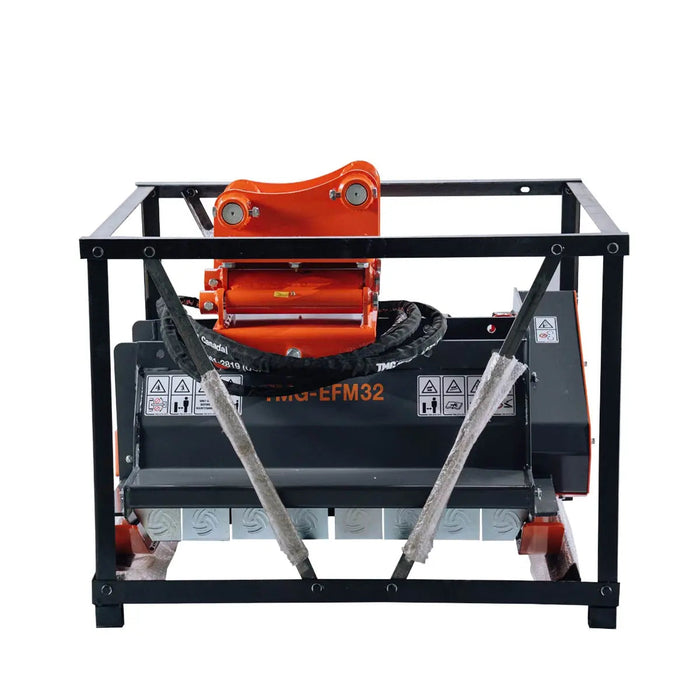

• Packaging: Packed in a metal crate shipping box
• Shipping dimensions (L × W × H): 104 cm × 86 cm × 86 cm / 41″ × 34″ × 34″
• Shipping weight: 263 kg (580 lb)

We know that when you invest in equipment, you're counting on it to perform day in and day out. At TMG Industrial, that trust means everything to us. That’s why we include a 1-year Warranty with every product we sell—because you deserve confidence with every purchase.

Our warranty is there to make sure your equipment stays reliable across the seasons, covering any issues caused by manufacturing defects in materials or workmanship. From fieldwork to property maintenance, you can count on your TMG equipment to deliver.

More than just warranty coverage, we’re committed to supporting you throughout the life of your machine. Our customer service team is here to help, whether you need technical advice, troubleshooting, or parts support.

For full warranty terms, please see our warranty policy

• Q: What equipment is this attachment designed for?

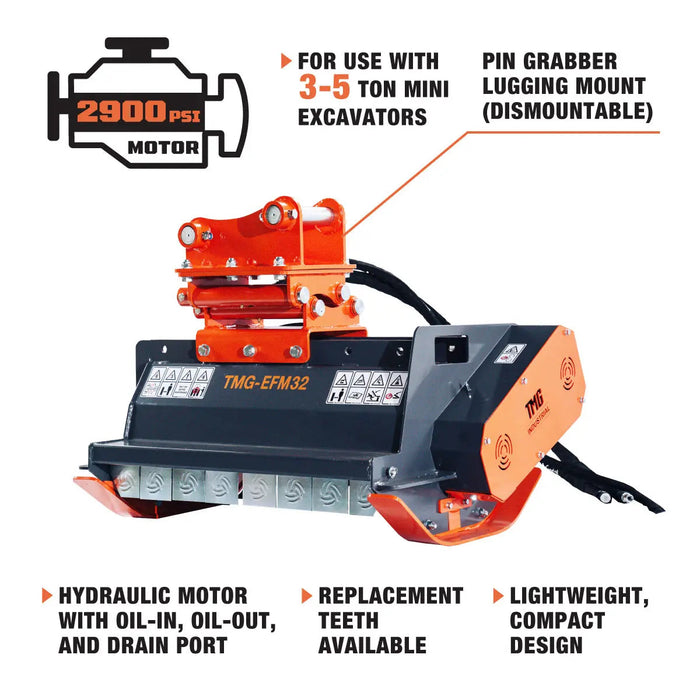

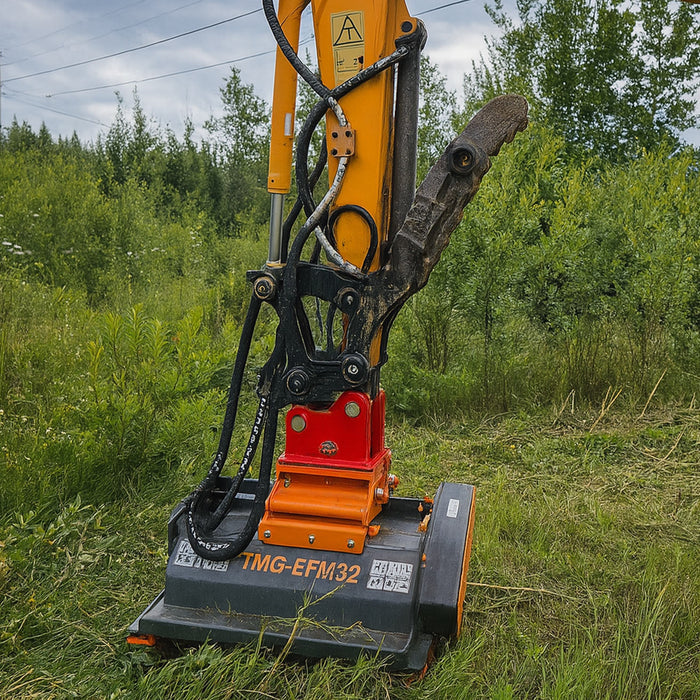

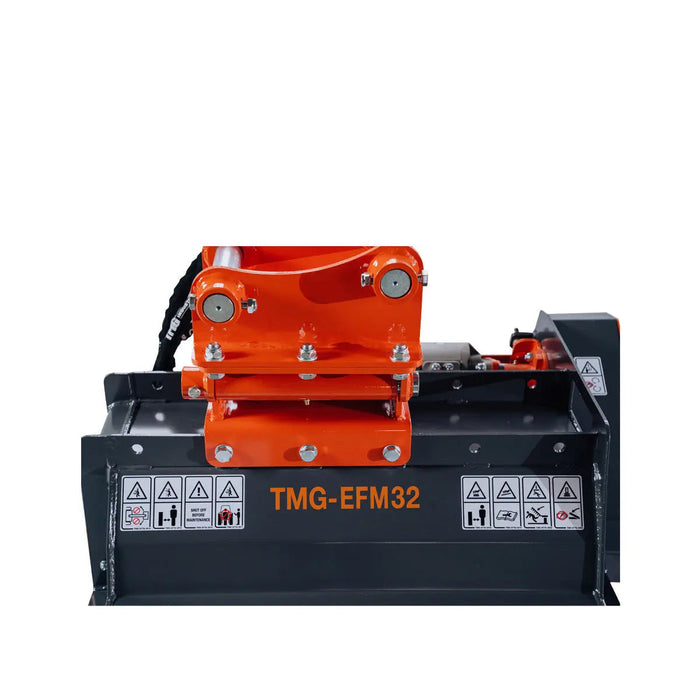

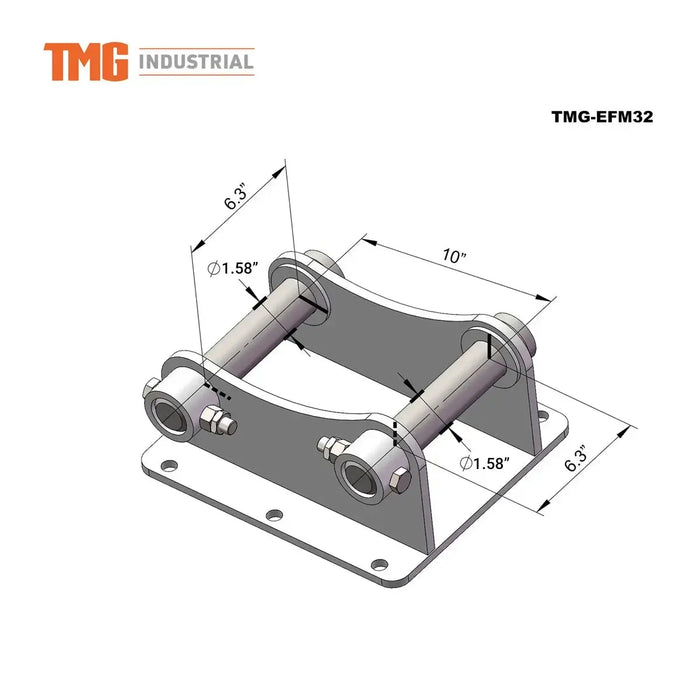

  A: Engineered for 3 – 5 ton mini excavators or backhoes, using our pin-grabber lug mount system for fast and secure hookup.
• Q: What cutting width and capacity can I expect?
  A: Features an 810 mm (32″) cutting width and handles vegetation up to 50 mm (2″) in diameter — ideal for brush, saplings and overgrown areas.
• Q: What hydraulic specifications are required?
  A: Requires 38 – 60 L/min (10 – 16 GPM) hydraulic flow with auxiliary pressure up to 20 MPa (2900 PSI). A dedicated 3/8″ case drain line must be installed to protect the hydraulic system.
• Q: Is the mower easy to maneuver and use?
  A: Yes. Its compact and lightweight form factor ensures excellent navigability in tight spaces or elevated positions around ponds, ditches or brush piles.
• Q: How does it perform on uneven terrain?
  A: Equipped with a self-leveling skid shoe system and adjustable support that maintains a uniform cut regardless of ground grade.
• Q: What type of debris does it produce and is it easy to clean up?
  A: Its 14 flail blades produce consistently sized mulch that can be spread or left to decompose naturally — no extensive cleanup required.
• Q: What about durability and maintenance?

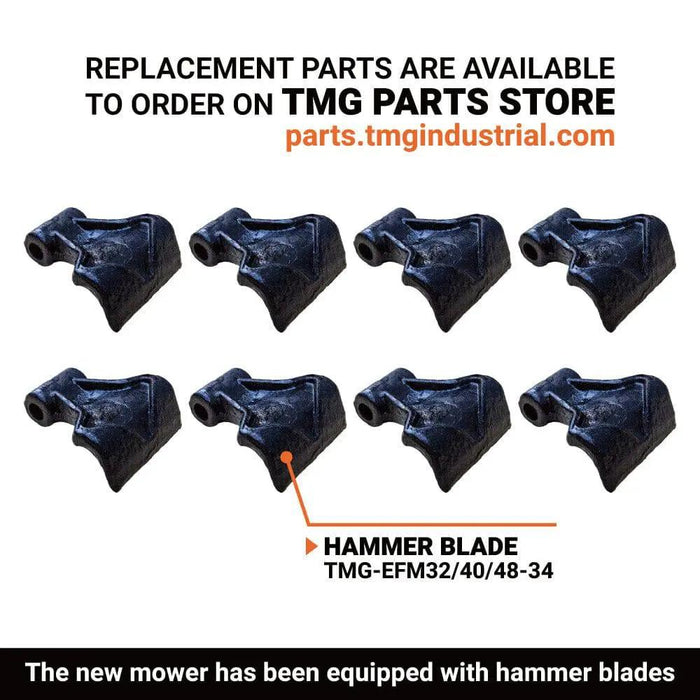

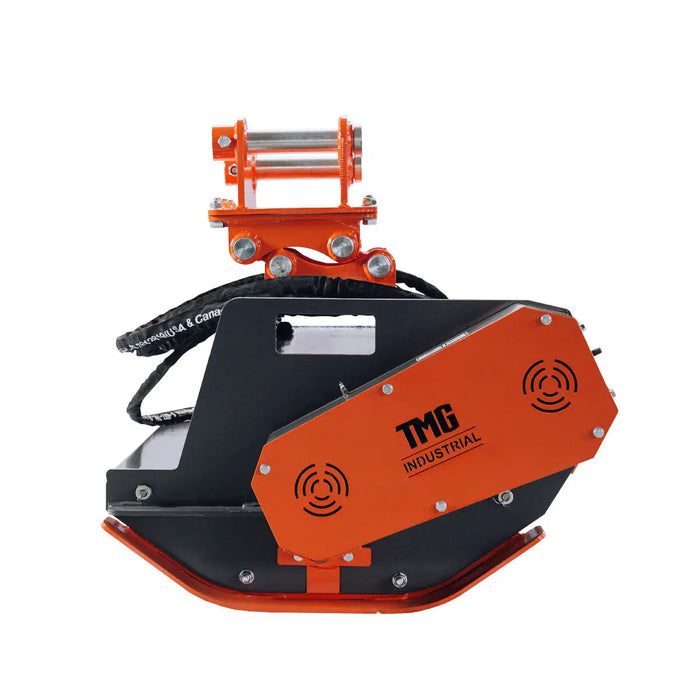

  A: Built for longevity with belt-drive transmission, motor protection plate, and replaceable blades. Spare parts are readily available through TMG Industrial.
• Q: Are any safety installations required before operation?
  A: Yes. A case drain hose must be fitted correctly to avoid over-pressure, potential seal failure, or hydraulic damage.
• Q: What is the warranty?
  A: It is backed by a 1-year manufacturer warranty. This covers defects in materials and workmanship. Customer support and spare parts are also available.
