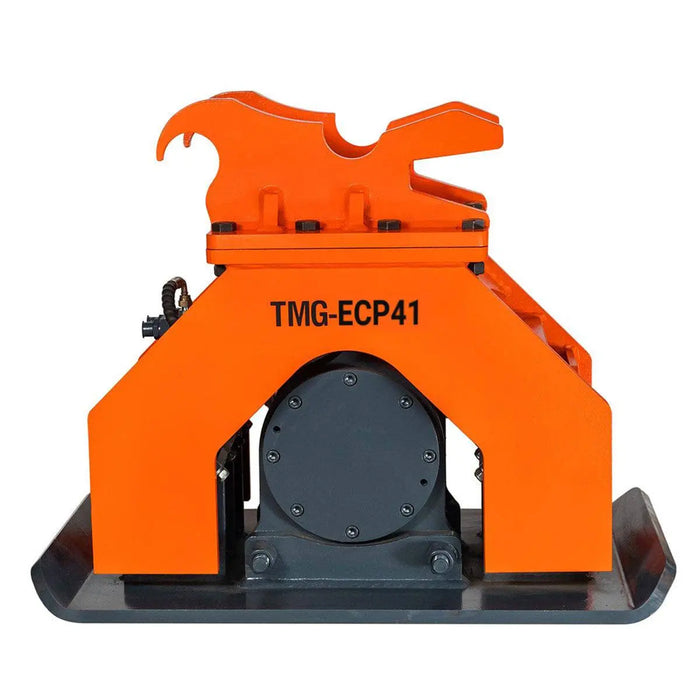

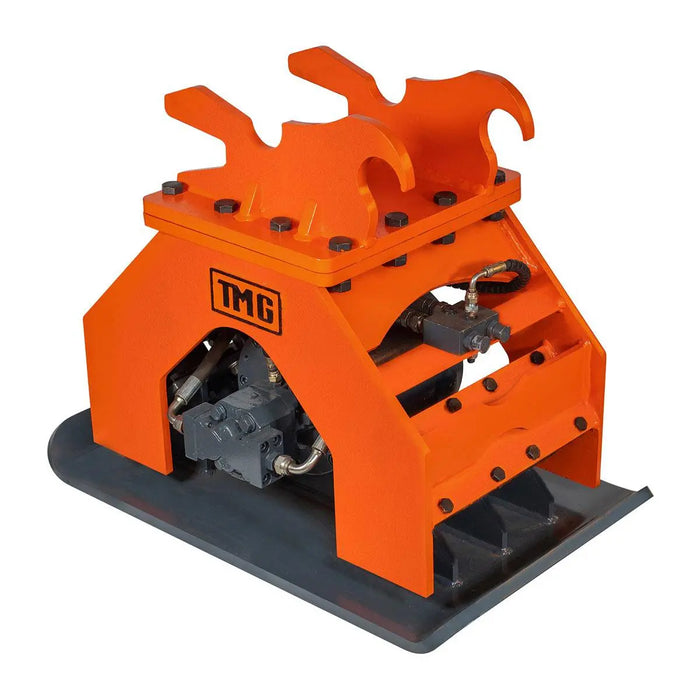

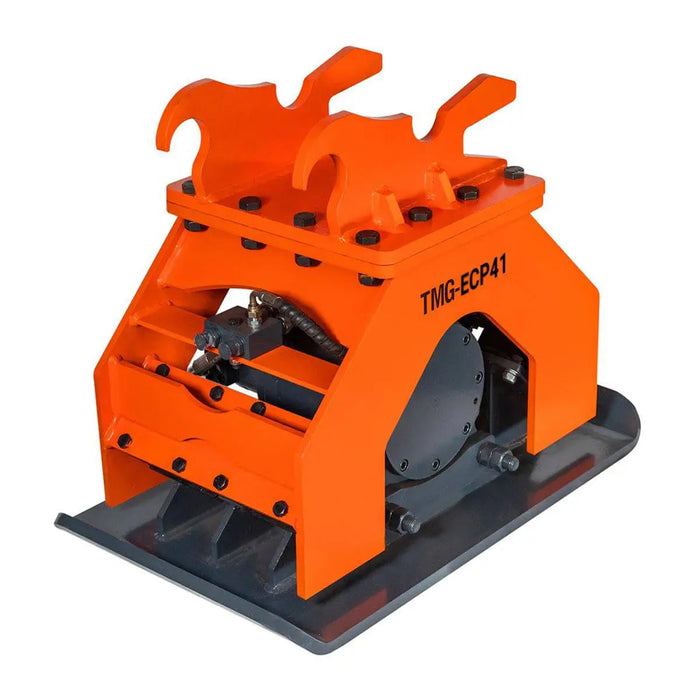

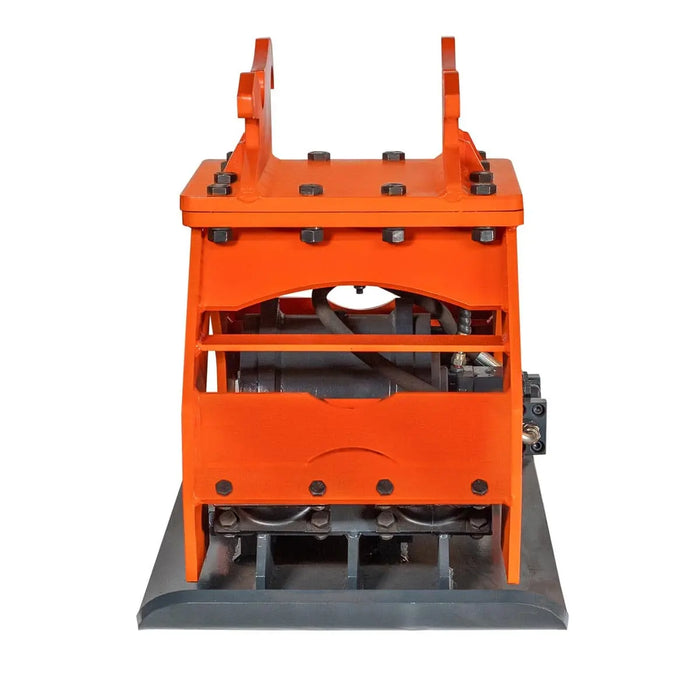

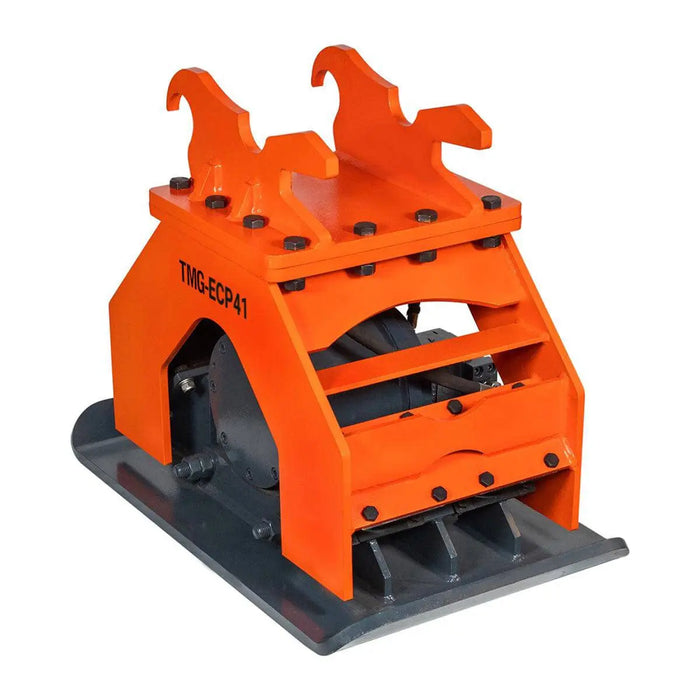

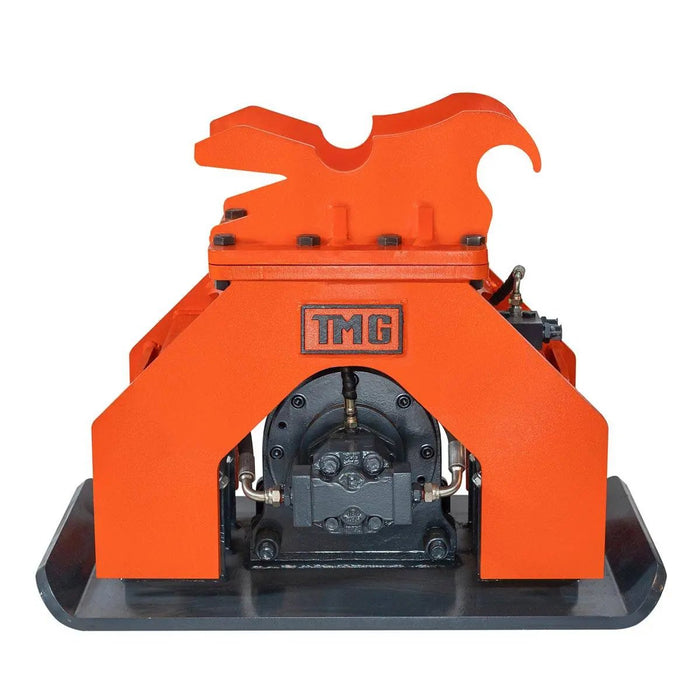

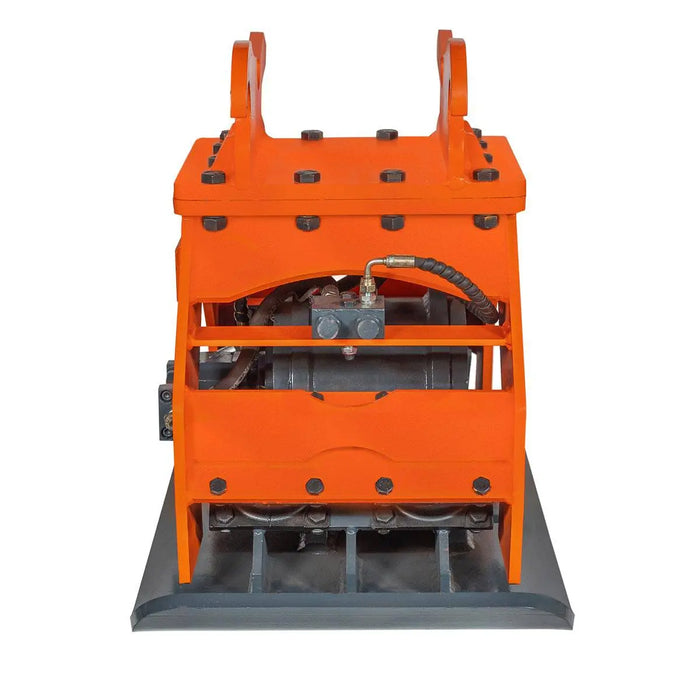

The TMG-ECP41 Hydraulic Plate Compactor is a robust attachment designed for 4–7 ton excavators, delivering 50 kN of impulse force for effective soil compaction. Its quick-change lugging system enhances workflow efficiency, making it an ideal choice for Australian contractors involved in construction, landscaping, and roadwork projects. With features like a fully sealed motor, overload protection, and optimized vibration control, the TMG-ECP41 ensures reliable performance and durability in demanding work environments.

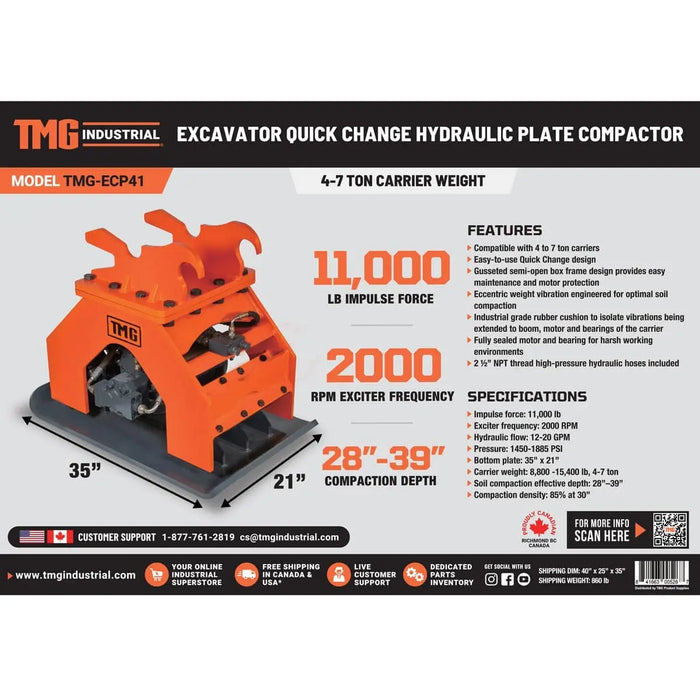

• Compatible Excavators: 4–7 Ton
• Impulse Force: 48.9 kN
• Compaction Force: 5 ton
• Compaction Depth (mm): 710–990 mm
• Compaction Density: 85% at 762 mm
• Exciter Frequency: 2000 RPM
• Bottom Plate Size (mm): 927 x 550 mm
• Hydraulic Flow (L/min): 45–85 L/min
• Hydraulic Pressure: 100–130 bar
• Hydraulic Hoses Included: (2) ½" NPT thread high-pressure hoses
• Hydraulic Hoses (Qty & Size): 2 pcs, 1/2" x 1.8 m
• Net Weight: 362 kg

Orders are dispatched from our primary Australian distribution centers. Processing typically takes 2–3 business days, with delivery expected within 10–15 business days, depending on your location and accessibility.

• Packaging: Securely packed in a metal crate
• Shipping Dimensions: 1016 × 686 × 864 mm (L × W × H)
• Shipping Weight: Approximately 367 kg
• Delivery: Australia-wide; forklift required for unloading

We know that when you invest in equipment, you're counting on it to perform day in and day out. At TMG Industrial, that trust means everything to us. That’s why we include a 1-year Warranty with every product we sell—because you deserve confidence with every purchase.

Our warranty is there to make sure your equipment stays reliable across the seasons, covering any issues caused by manufacturing defects in materials or workmanship. From fieldwork to property maintenance, you can count on your TMG equipment to deliver.

More than just warranty coverage, we’re committed to supporting you throughout the life of your machine. Our customer service team is here to help, whether you need technical advice, troubleshooting, or parts support.

For full warranty terms, please see our warranty policy

Q: What is the TMG-ECP41 designed for?

The TMG-ECP41 is a robust hydraulic plate compactor built for compacting soils, gravel, and sand in demanding applications such as foundations, road building, and trench backfilling. It performs well on both bituminous and granular surfaces.

Q: What size excavator is suitable for the TMG-ECP41?

Suitable for excavators in the 4–7 ton range (approximately 3,992 to 6,985 kg).

Q: How much impulse force does the TMG-ECP41 generate?

It delivers 11,000 lbf (50 kN) of impulse force for effective soil compaction.

Q: What is the maximum compaction depth?

Effective compaction depth ranges from 28 to 39 inches (71.1 to 99.1 cm).

Q: What is the compaction density?

Up to 85% compaction density at a depth of 30 inches (76.2 cm).

Q: What are the hydraulic requirements?

Hydraulic flow: 12–20 GPM (45.4–75.7 LPM); Pressure: 1450–1885 PSI (10.0–13.0 MPa).

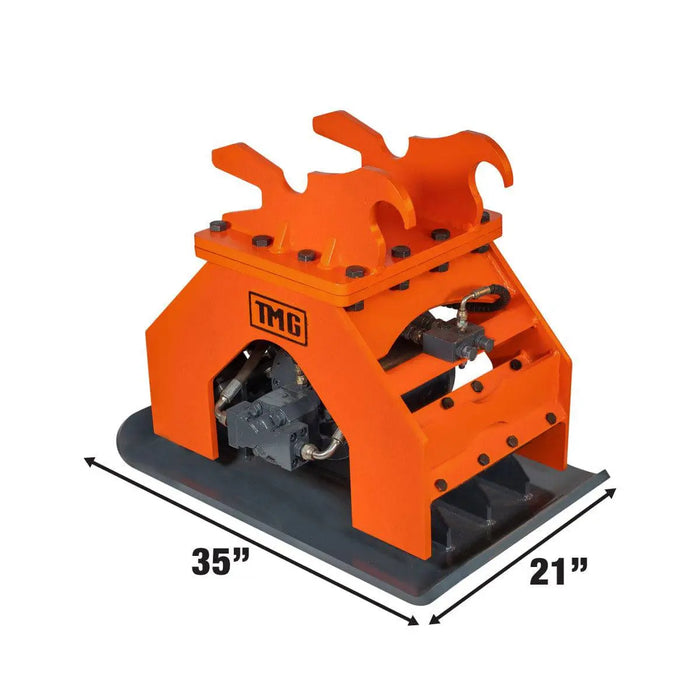

Q: What are the dimensions of the bottom plate?

35" × 21" (88.9 cm × 53.3 cm).

Q: How much does the TMG-ECP41 weigh?

Approximately 810 lb (367.4 kg) net and shipping weight.

Q: Are hydraulic hoses included?

Yes, includes two 1/2" NPT high-pressure hydraulic hoses for fast hookup.

Q: Does the TMG-ECP41 protect my equipment?

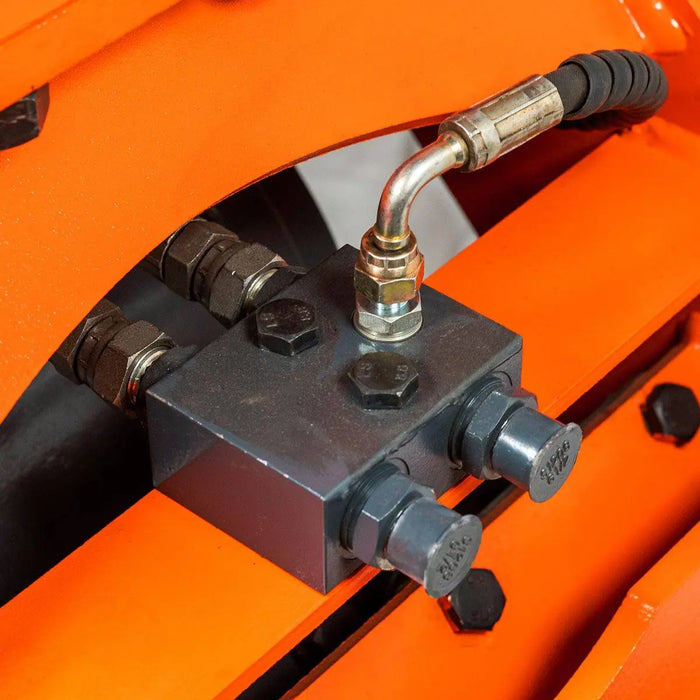

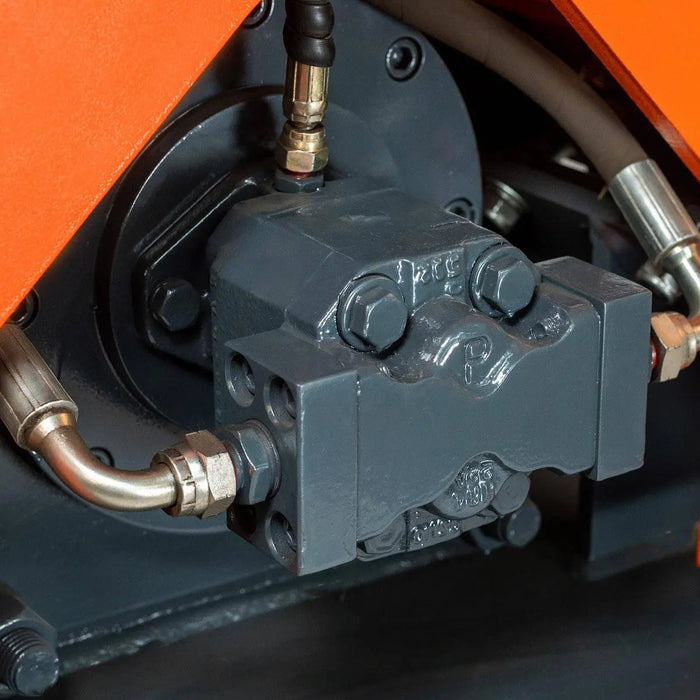

Yes. It includes an overload shutoff valve and industrial rubber cushions to isolate vibration and prevent damage. Motor and bearings are fully sealed to protect from dust and moisture.

Q: What is the warranty on the TMG-ECP41?

This product includes a 1-year manufacturer warranty. Refer to the TMG Industrial website for policy details.
