CURRENTLY IN STOCK
TMG-SBH60

9' liukuohjattu kaivurikuormaaja kääntövarrella 30-100 hv:n kuormaajiin, 15" kauha TMG-SBH60

Product Manual

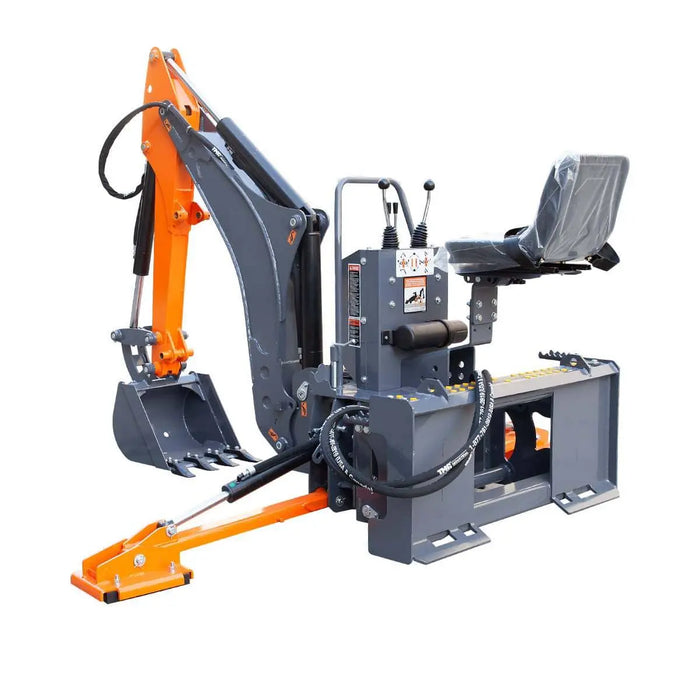

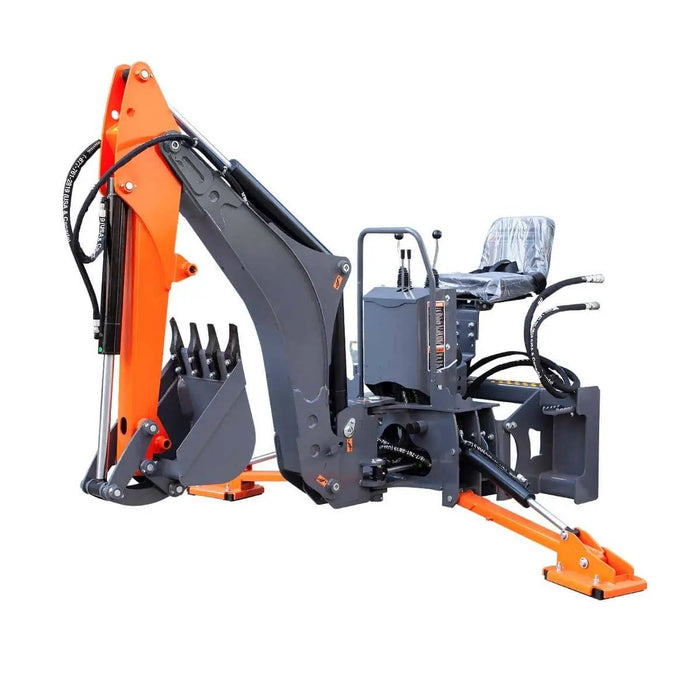

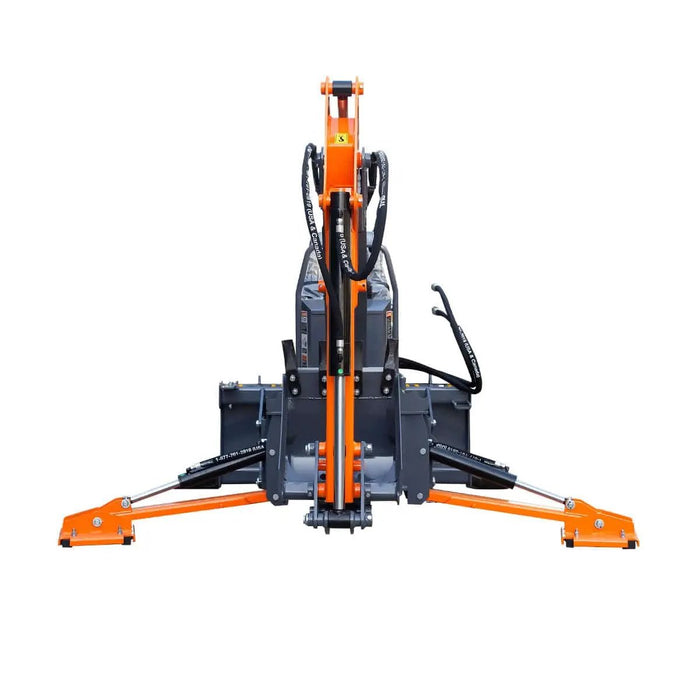

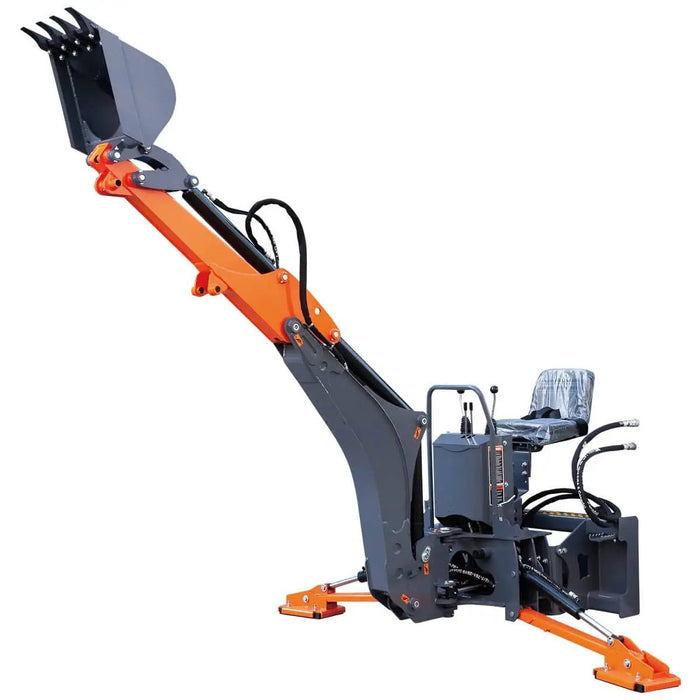

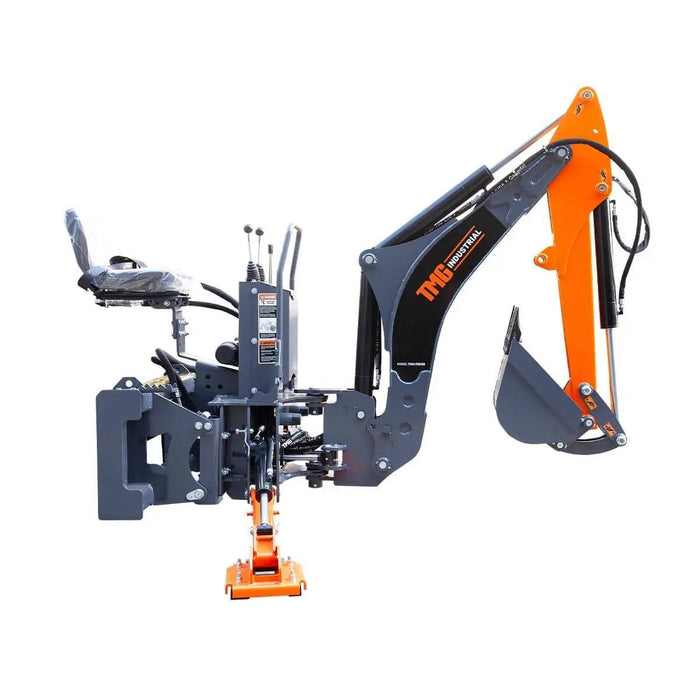

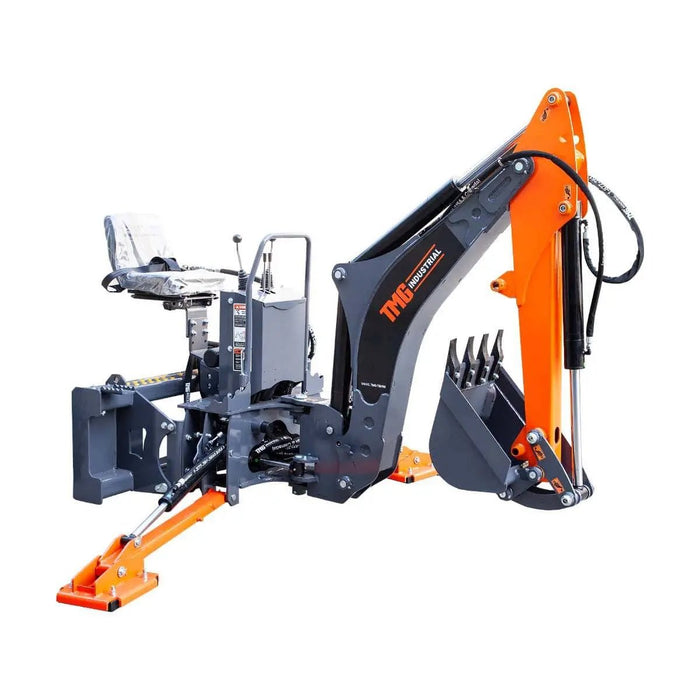

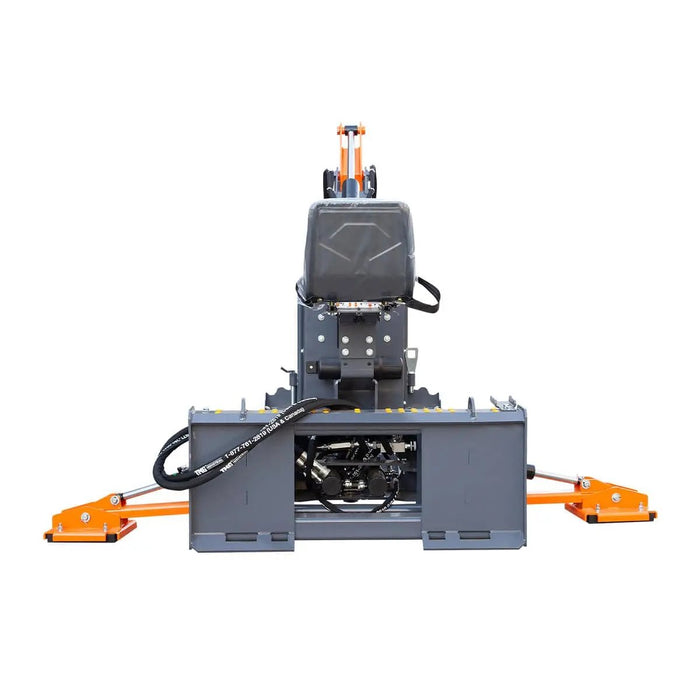

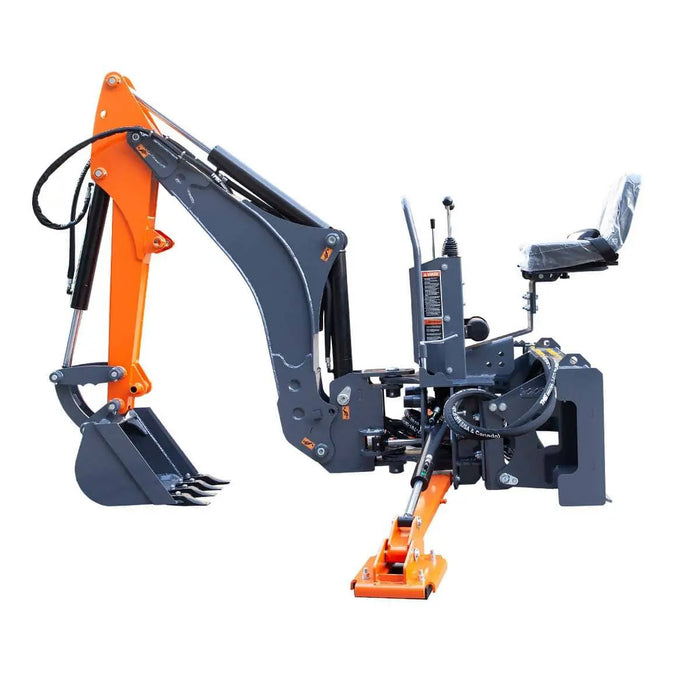

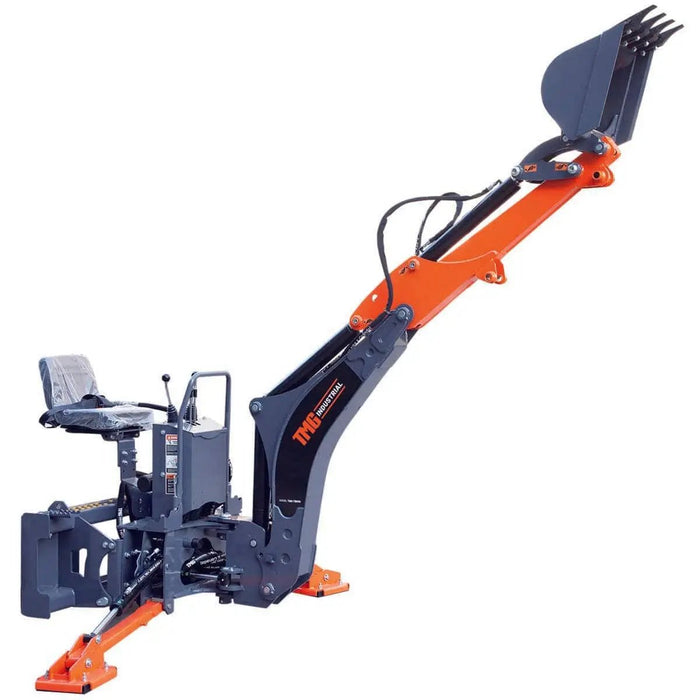

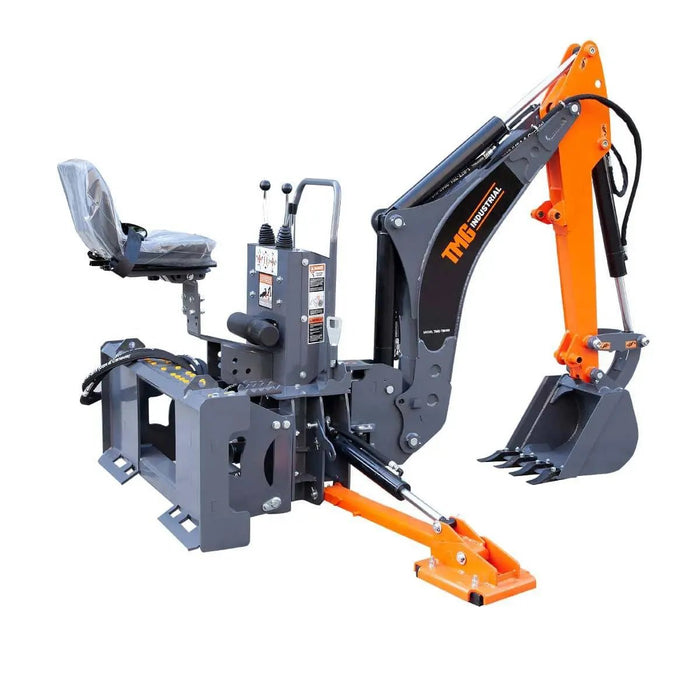

TMG Industrial 9-ft Skid Steer Swing Backhoe Attachment, 30-100 HP Skid Steers, Italian Hydraulic Control Valves, 15” Bucket, TMG-SBH60
CURRENTLY IN STOCK
TMG-SBH60
€6.222,95 - €6.222,95
€6.222,95
€6.222,95 - €6.222,95
€6.222,95
€6.222,95

Arriving in Summer 2026 Learn More
GRAB IT SOON - ONLY 2 LEFT IN STOCK
1-800-870-844
Product Image 1 Product Image 2 Product Image 3

Specifications icon Specifications

  • Skid Steer Power Required: 30–100 HP
  • Mount Type: Universal skid steer mount
  • Hydraulic Flow Rate: 19–26 L/min
  • Hydraulic Pressure: 16 MPa
  • Hydraulic Hoses & Flat Face Couplers: Included
  • Hydraulic Flat Face Couplers Spec: 1/2"
  • Number of Hydraulic Hoses: 2
  • Hydraulic Hoses Diameter: DN13
  • Bucket Rotation Degree: 180°
  • Swing Arc: 180°

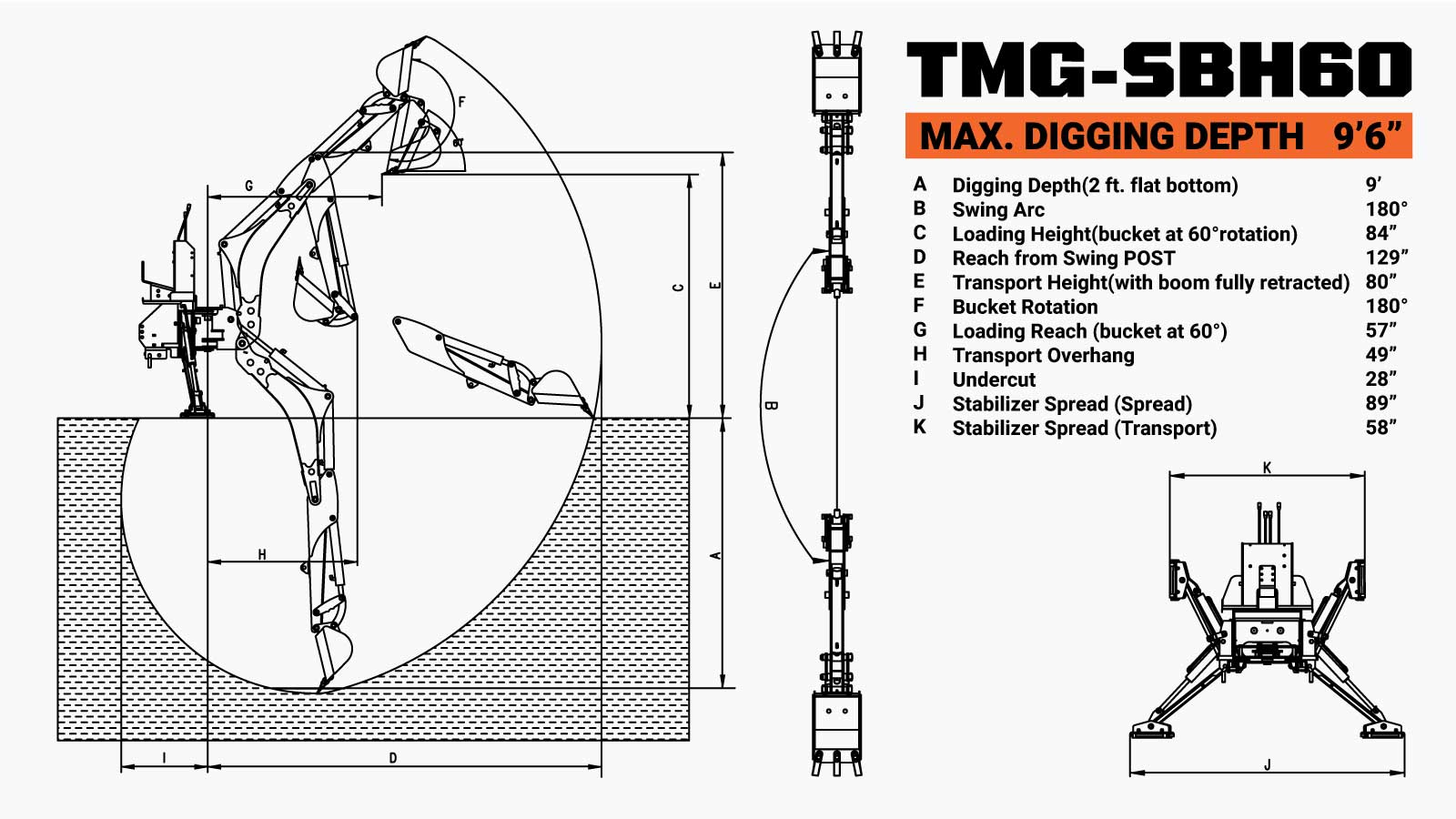

  • Max. Digging Depth: 2740 mm (9')
  • Max. Working Height: 2120 mm (123")
  • Max. Working Length: 3275 mm (129")
  • Max. Loading Height: 2130 mm (84")
  • Stabilizer Width (Spread): 2360 mm (89")
  • Stabilizer Width (Transport): 1650 mm (58")
  • Ground Clearance: 250–305 mm (10"–12")
  • Bucket Size: 380 mm (15")
  • Bucket Capacity: 0.036 m³ (1.3 cu-ft)
  • Dipper Boom Digging Force: 960 kg (2200 lb)
  • Bucket Digging Force: 1460 kg (3210 lb)
  • Bucket and Boom Dig Simultaneously: Yes
  • Surface Finish: Powder coating
  • Overall Dimensions: 2300 × 1650 × 1700 mm (90.5" × 65" × 67")
  • Net Weight: 548 kg (1210 lb)
9' liukuohjattu kaivurikuormaaja kääntövarrella 30-100 hv:n kuormaajiin, 15

Product Description icon Product Description

TMG-SBH60 liukuohjattu kaivurilaite tarjoaa laajan valikoiman ominaisuuksia kaivuprojekteihisi. Sen laaja ulottuvuus ja 180° puomin kääntö mahdollistavat pääsyn vaikeasti tavoitettaville alueille ilman, että lisälaitetta tarvitsee siirtää. Tämä kaivurilaite on yhteensopiva 30–100 hv:n liukuohjattujen kaivureiden kanssa ja siinä on 15 tuuman kaivukauha, joka sopii täydellisesti ojitusten kaivamiseen, kastelujärjestelmien asentamiseen, maisemointiin ja muuhun.

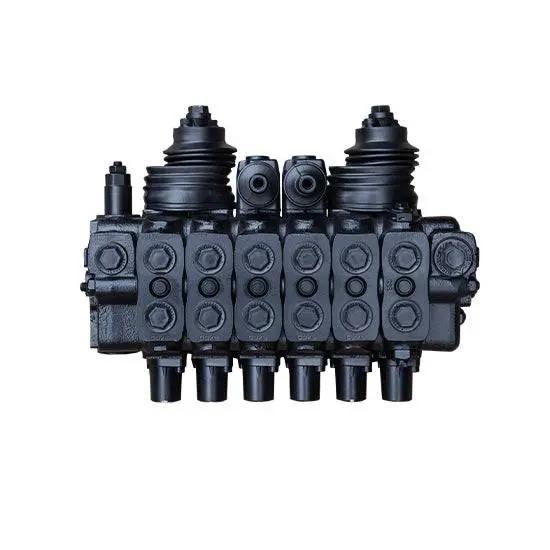

Tässä kaivurikuormaajassa on italialaiset Hydro Control -venttiilit, jotka optimoivat hydraulipaineen jakautumisen tarkan ajoituksen ja suorituskyvyn saavuttamiseksi. Kaksoishydraulinen sylinterivarsi ja kauhan vivusto on suunniteltu suurta irrotusvoimaa ja kaivuvoimaa varten ja mahdollistavat 180° kauhan pyörityksen.

Vaihdettavat holkit, vaihdettavat pulttikiinnitteiset valetut hampaat ja kaikkien nivelpisteiden rasvanipat tekevät huoltosta helppoa. Tukijaloissa on irrotettavat/vaihdettavat kumiset katupehmusteet, jotka estävät nurmikoiden, asfaltin ja betonin vaurioitumisen.

Shipping Information icon Shipping Information

The order will ship from one of our warehouses in Canada or the United States. Under normal circumstances, processing and dispatch takes 2–3 business days. Estimated delivery time is 10–15 business days, depending on your location and site accessibility.

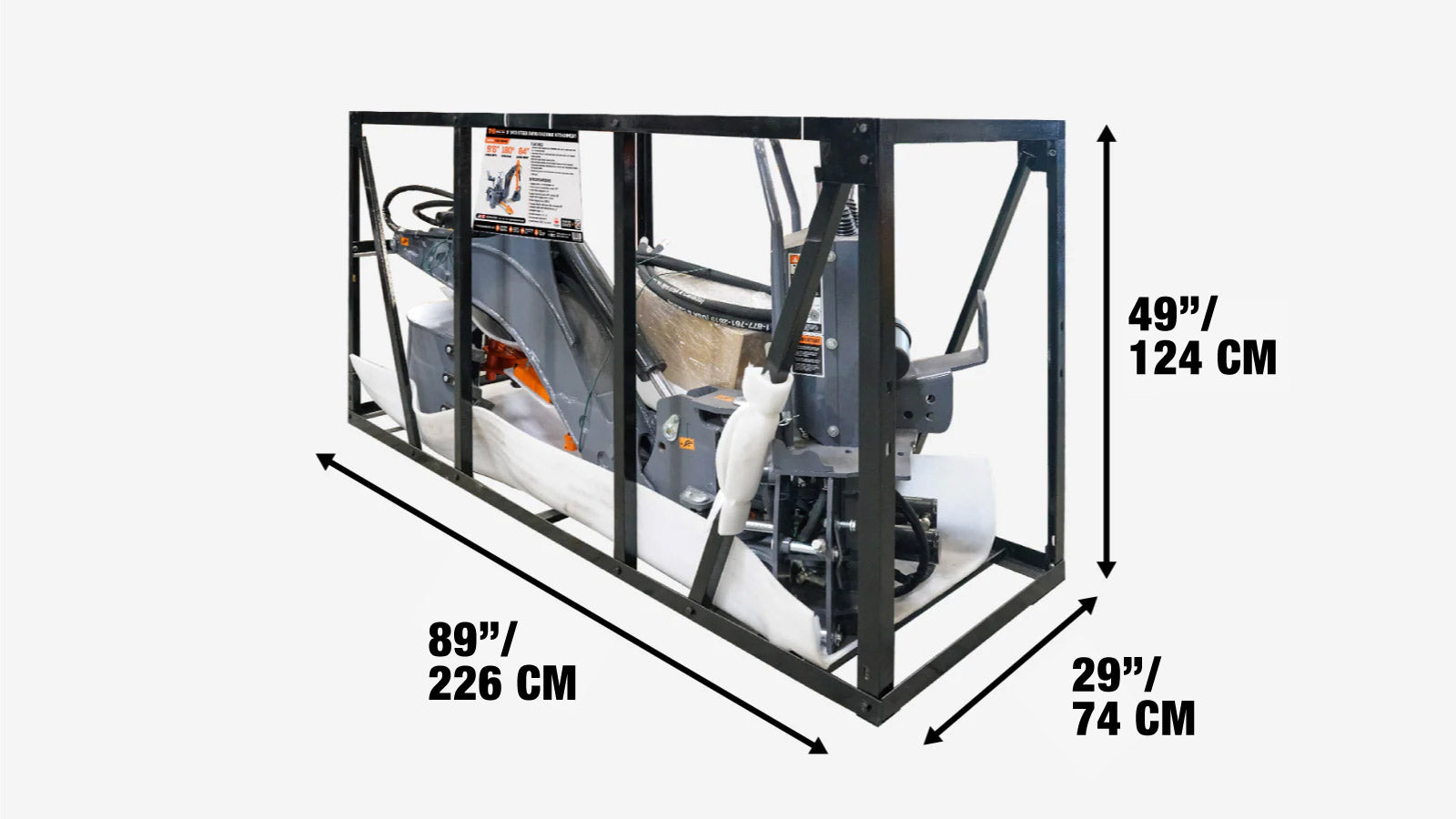

  • Packaging: Metal crate shipping box
  • Shipping dimensions: 226 × 74 × 124 cm (89 × 29 × 49 in) (L × W × H)
  • Shipping weight: 647 kg (1,425 lb)
Shipping from Rowville,VIC
What happens after you place your order?
9' liukuohjattu kaivurikuormaaja kääntövarrella 30-100 hv:n kuormaajiin, 15

Warranty icon Warranty

We know that when you invest in equipment, you're counting on it to perform day in and day out. At TMG Industrial, that trust means everything to us. That’s why we include a 1-year Warranty with every product we sell—because you deserve confidence with every purchase.

Our warranty is there to make sure your equipment stays reliable across the seasons, covering any issues caused by manufacturing defects in materials or workmanship. From fieldwork to property maintenance, you can count on your TMG equipment to deliver.

More than just warranty coverage, we’re committed to supporting you throughout the life of your machine. Our customer service team is here to help, whether you need technical advice, troubleshooting, or parts support.

For full warranty terms, please see our warranty policy

Questions & Answers icon Questions & Answers

  • Q: What skid steer power is the TMG-SBH60 compatible with?
    A: It supports 30–100 HP skid steers.
  • Q: What bucket size is included?
    A: Comes standard with a 380 mm (15") digging bucket.
  • Q: How deep can this backhoe dig?
    A: Maximum digging depth is 2740 mm (9').
  • Q: What is the boom reach?
    A: The boom’s maximum reach is 3275 mm (129").
  • Q: What is the swing and rotation capacity?
    A: Boom swing range is 180°, and bucket rotation is 180°.
  • Q: What are the force ratings (digging / breakout)?
    A: Bucket digging force: 1460 kg (3210 lb). Excavating digging force: 960 kg (2200 lb).
  • Q: What is the warranty?
    A: It is backed by a 1-year manufacturer warranty covering defects in materials and workmanship. Customer support and spare parts are also available.
